Combine Setup Screen

H94602-UN-05OCT10

H94604-UN-05OCT10

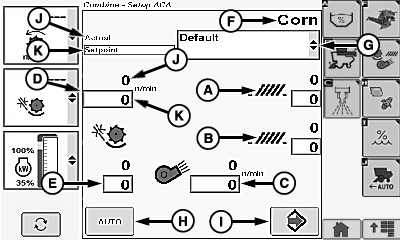

Machine Settings:

• Automatic Combine Adjust (ACA) (Numeric Entry)
  • Chaffer Position (A)
  • Sieve Position (B)
  • Fan Speed (C)
  • Threshing Speed (D)
  • Threshing Clearance (E)
  • Harvested Crop (Viewable Only) (F)

• Crop Modifiers (G)
  • Default
  • Dry (Default)
  • Wet (Default)
  • New
  • Cleanout

• Auto Icon (H) - Desired machine settings are chosen by operator and automatically adjust to settings shown on display.
• Save Icon (I) - Allows operator to save personal machine settings if new was chosen from crop modifiers menu NOTE: Personalizing machine settings will not override factory settings.

• Actual (setpoint value in black) (J) - indicates current setpoint value of machine.
• Setpoint (setpoint value in blue) (K) - setpoint value automatically increases or decreases when plus (+) or minus (-) symbol is touched or selection dial is turned. NOTE: Machine automatically adjusts to operator setpoint value.

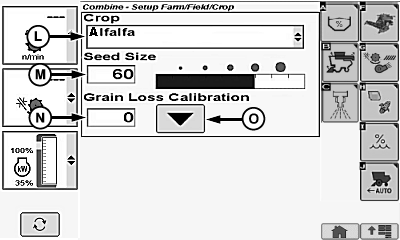

Crop Settings:

NOTE: Farm/Field naming is setup in the GreenStar application. Refer to GreenStar manual for further information.

• Crop (L)¹
  • Fixed List
• Loss Sensitivity
  • Seed Size (M)
• Grain Loss Calibration
  • Calibration Reference Number (N)
  • Calibration Icon (O)

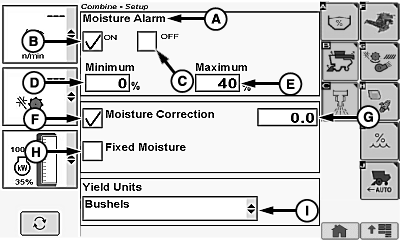

Moisture Settings:

NOTE:

H94607-UN-05OCT10

• Moisture Alarm (A)
  • ON (B)
  • OFF (C)
  • Minimum Alarm (1 - 50%) (D)
  • Maximum Alarm (1 - 60%) (E)

• Moisture Correction (-25.0 to 25.0, increments of 0.1) (F)
  • Manual Offset Setting (G)
  • Fixed Moisture (H)

Yield Units Settings:

• Harvesting Yield Units (I)
  • Fixed List

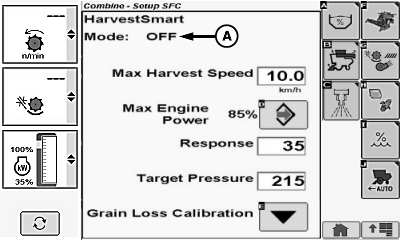

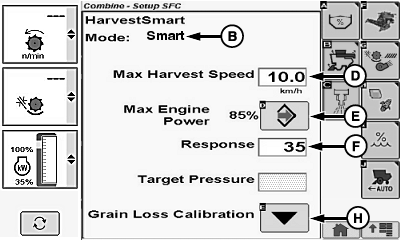

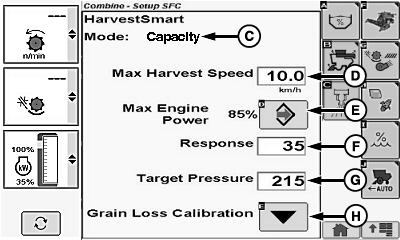

Harvest Smart Feed Rate Settings (If Equipped):

H94608-UN-05OCT10

H94609-UN-05OCT10

H94610-UN-05OCT10

• Current Mode of Operation
  • OFF (A)
  • Smart (B)
  • Capacity (C)
• Max Harvest Speed (2.0 - 14.0 km/h) (1.2 - 8.6 mph), increments of (0.1 km/h) (0.1 mph) (D)
• Max Engine Power Calibration Icon (E)
• Response (1 - 100, increments of 1) (F)
• Target Pressure (30 - 420, increments of 1) (G)
• Grain Loss Calibration (H)

H94650-UN-05OCT10

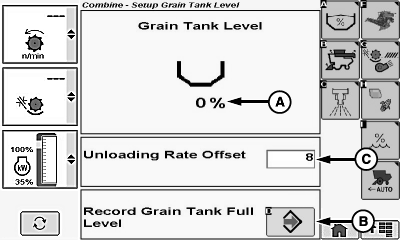

Grain Tank Level Settings:

NOTE: Allows operator to calibrate desired grain tank fullness level.

• Grain Tank Level Percentage (A)
• Save Icon (B)

Unloading Rate Offset Settings:

NOTE: Allows operator to change calculated unloading rate offset values.

• Unloading Rate Offset (C)
  • Offset Rate (-1.5 - +1.5)

H94651-UN-05OCT10

H94652-UN-05OCT10

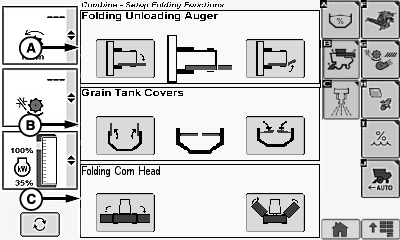

Folding Function Settings:

NOTE: Shows all optional folding features if equipped.

• Folding Unloading Auger (A) (If Equipped)
  • Auger Position Indicator
  • Unfold Icon
  • Fold Icon
• Grain Tank Covers (B) (If Equipped)
  • Grain Tank Position Indicator
  • Unfold Icon
  • Fold Icon
• Kemper Corn Head (C) (If Equipped)
  • Unfold
  • Fold

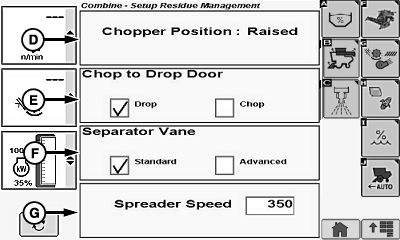

Residue Management Settings:

• Chopper Position (D) (If Equipped)
  • Raised
  • Lowered

• Chop to Drop Door Position (E) (If Equipped)
  • Open
  • Closed

• Separator Vane Position (F) (If Equipped)
  • Standard
  • Advanced

• Spreader Speed (I) (Advanced PowerCast Spreader)
  • 350 - 550 rpm (Corn) (Default 500 rpm)
  • 600 - 800 rpm (Small Grain) (Default 700 rpm)
