Residue Management Setup

H94473-UN-31MAR10

Combine Setup Icon

H94649-UN-05OCT10

H99043-UN-09NOV10

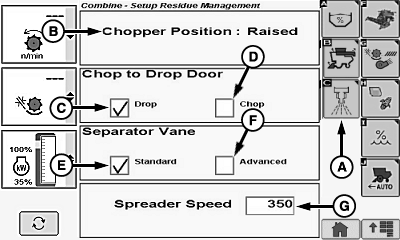

A - Residue Management Setup Icon

B - Chopper Position

C - Chopper Door Position (Open)

D - Chopper Door Position (Closed)

E - Separator Vane Position (Standard)

F - Separator Vane Position (Advanced)

G - Spreader Speed Box

H - Enter/Accept Icon

NOTE: Display shows all optional residue management features if equipped.

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when residue management setup icon (A) is highlighted.

Chopper Position (B) (If Equipped):

Displays current position of chopper.

• Raised
• Lowered

Chop to Drop Door Position (If Equipped):

NOTE: Separator must be OFF when changing position of chop to drop door.

Touch or press confirm switch when desired box is highlighted.

• Open (C) - allows operator to automatically open chop to drop door.
• Closed (D) - allows operator to automatically close chop to drop door.

Box displays a checkmark indicating which was selected.

Chopper door automatically opens or closes depending on which box was selected.

Separator Vane Position (If Equipped):

NOTE: Separator must be OFF when changing position of separator vanes.

Touch or press confirm switch when desired standard box or advanced box is highlighted.

• Standard (E) - allows operator to run separator vanes in the standard position.
• NOTE: Running separator vanes in advanced position may increase grain losses in certain crop and conditions. Crop dwell time in separator is reduced to improve straw quality.
  Advanced (F) - allows operator to change position of separator vanes to improve straw quality.

Box displays a checkmark indicating which was selected.

Separator vanes automatically open to desired position depending on which box was selected.

Advanced PowerCast Spreader Speed (If Equipped):

Touch or press confirm switch when spreader speed box (G) is highlighted.

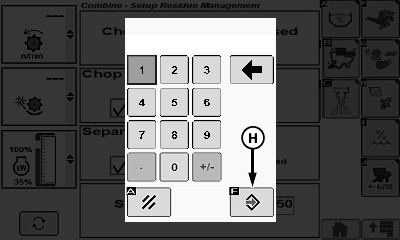

Touch or press confirm switch when desired digits are highlighted.

NOTE: Spreader speed has a range of:

• 350 - 550 rpm (Corn) (Default 500 rpm)
• 600 - 800 rpm (Small Grain) (Default 700 rpm)

Repeat procedure until desired spreader speed value is shown.

Touch or press confirm switch when enter/accept icon (H) is highlighted.
