Shifting Feeder House Reverser

NOTE:

H94655
H94655-UN-27JAN10

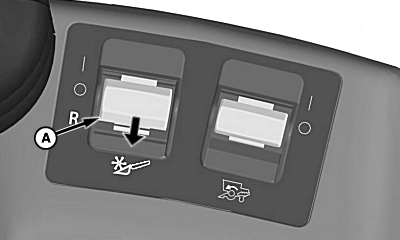

A - Header Engage/Feeder House Reverser Switch

If operating high engine speed and feeder house reverser switch is engaged, engine will automatically go to low idle.

Turn header engage/feeder house reverser switch (A) OFF and throttle engine to low idle.

Push down, pull back and hold feeder house reverser switch until feeder house is clear of plug.

Release switch once feeder house is clear.

Throttle engine to high idle and resume harvesting.

IMPORTANT: Never attempt to force ”slugs” through machine by repeated cycling of reverser drive. Repeated cycling shortens life of components.

OUO6075,000043E-19-20091120
