Setpoint Modes (Manual or Automatic)

H94659

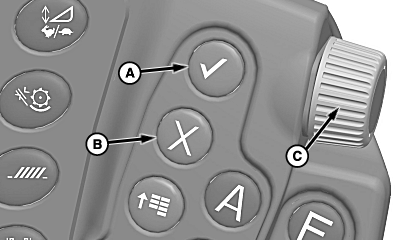

H94659-UN-27JAN10

A - Confirm Switch

B - Cancel Switch

C - Selection Dial

Pressing confirm switch (A) or cancel switch (B) while a setpoint screen is displayed causes setpoint screen to disappear and return to home page.

Pressing confirm switch or cancel switch has the following effects while adjusting:

  • Press confirm switch while adjusting:
    • Manual mode – system deactivates.
    • Automatic mode – system continues adjusting in background.
  • Press cancel switch while adjusting:
    • Manual mode – system deactivates.
    • Automatic mode – system deactivates.

Turning selection dial (C) in both modes either increases (forward) or decreases (rearward) setpoint.


Manual Mode

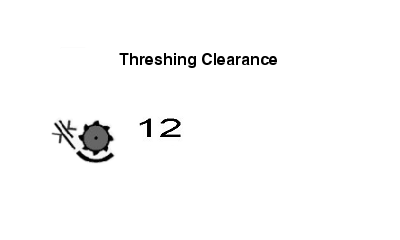

H95967
H95967-UN-07APR10

Provides basic increase/decrease function control. Used when in Road Mode or when automatic mode requirements are not met.

With key switch ON and separator and header disengaged the following setpoints can be adjusted:

  • HydraFlex Pressure
  • Draper Speed
  • Reel Speed
  • Chaffer Opening
  • Sieve Opening
  • Threshing Clearance
  • Cleaning Fan Speed
  • Threshing Speed
  • Platform Fore/Aft Tilt
  • Chopper Vane Angle
  • Belt Speed

Press desired CommandARM™ switch.

Touch plus (+) or minus (-) symbol or rotate selection dial to setpoint.


Automatic Mode

NOTE:

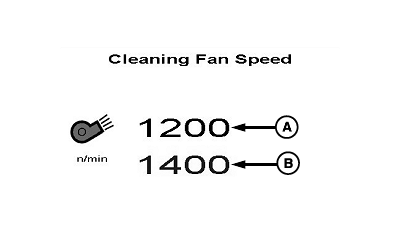

H95966
H95966-UN-07APR10

A - Black Value

B - Blue Value

Black value (A) indicates current setpoint. Blue value (B) indicates setpoint value increase or decrease when plus (+) or minus (-) symbol is touched or selection dial is turned.

Provides advanced ”dial-in” function control.

With engine at high idle and separator engaged the following setpoints can be adjusted:

  • Threshing Speed
  • Cleaning Fan Speed

With engine running, the following setpoints can be adjusted:

  • Chaffer Opening
  • Sieve Opening
  • Threshing Clearance
  • Chopper Vane Angle
  • Spreader Speed
  • Header Height Rate
  • Header Height Sensitivity
  • Manual Lateral Tilt Sensitivity
  • Automatic Lateral Tilt Sensitivity
  • ProDrive Transmission Max Speed Range 1
  • ProDrive Transmission Max Speed Range 2
  • Header Height Sensing Float Position

Press desired CommandARM™ switch.

Touch plus (+) or minus (-) symbol or rotate selection dial to setpoint.

CommandARM is a trademark of Deere & Company
