Header Height/HydraFlex™ Pressure Control Dial
H94722-UN-27JAN10

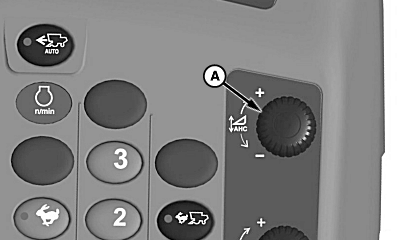

A - Header Height/HydraFlex Pressure Control Dial
Header height control dial (A) allows the operator to select the position of the header relative to the ground and return to that position automatically (see Header Height Resume and Header Height Sensing in CommandTouch Cab Cornerpost section).Turn dial towards plus (+) symbol to raise header and setpoint (if equipped with HydraFlex increase pressure) or towards minus (-) symbol to lower header and setpoint (if equipped with HydraFlex decrease pressure).
|
HydraFlex is a trademark of Deere & Company |
