Feeder House Rate/Sensitivity Adjust Switch

H94674
H94674-UN-27JAN10

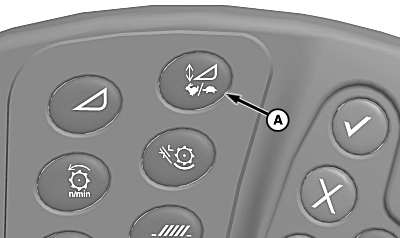

A - Feeder House Rate/Sensitivity Adjust Switch

Feeder house rate/sensitivity adjust switch (A) allows operator to compensates for uneven ground and controls horizontal and vertical positions of header. System continuously compares preset positions and actual positions, thus keeping header in desired working position.


Manual Raise/Lower Speed:

Manual raise/lower speed controls response rate of header raise/lower functions for manual control or when in automatic height resume mode.

NOTE: Rate setting shown on display when adjusting. Settings are adjusted between 0 to 100.

  1. Press feeder house rate/sensitivity adjust switch (A) once to select manual raise/lower speed.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease response speed.

  3. Display shows operator adjustment settings.


Header Height Sensitivity:

Height Sensing and Active Header Float Pressure Sensitivity (Automatic Functions) controls speed of response for header movements when in automatic sensing and automatic float modes.

NOTE: Sensitivity setting is shown on display when adjusting. Settings are adjusted between 0 to 100.

  1. Press feeder house rate/sensitivity adjust switch (A) twice to select header height sensitivity.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease sensitivity.

  3. Display shows operator adjustment settings.


Manual Tilt Speed:

NOTE: Manual tilt speed function only works on closed-center hydraulic machines equipped with lateral tilt.

Manual tilt speed controls response for lateral tilt movements when in manual rate mode.

NOTE: Rate setting is shown on display when adjusting. Settings are adjusted between 0 to 100.

  1. Press feeder house rate/sensitivity adjust switch (A) three times to select manual tilt speed.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease tilt speed.

  3. Display shows operator adjustment settings.


Automatic Tilt Sensitivity:

NOTE: Automatic tilt sensitivity speed function only works on lateral tilt equipped machines.

Automatic tilt sensitivity controls speed of response for lateral tilt movements when in automatic sensing and automatic float modes.

NOTE: Sensitivity setting is shown on display when adjusting. Settings are adjusted between 0 to 100.

  1. NOTE: Feeder house lateral tilt sensitivity speed function only works on lateral tilt equipped machines.

    Press feeder house rate/sensitivity adjust switch (A) four times to select automatic tilt sensitivity.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease tilt sensitivity.

  3. Display shows operator adjustment settings.
