Threshing Speed Adjust Switch

H94669
H94669-UN-27JAN10

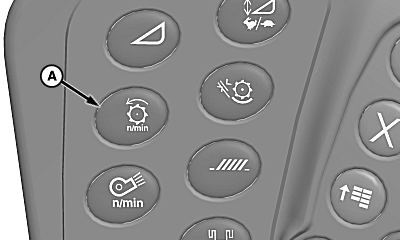

A - Threshing Speed Adjust Switch

Threshing speed adjust switch (A) increases or decreases threshing speed.

  1. Engage separator.

  2. Press threshing speed adjust switch.

  3. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease threshing speed.

  4. Display shows operator adjustment settings.

NOTE: Threshing speed switch resets tachometer for low speed alarm. Whenever threshing speed is changed the alarm is also reset. Threshing speed may increase about 30 rpm over four hours as oil temperature increases. Adjust threshing speed as needed.

OUO6075,000044A-19-20100928
