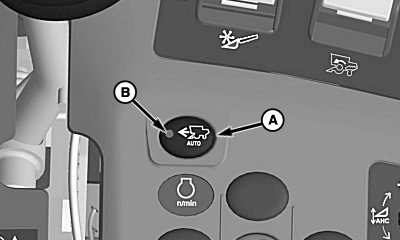

Harvest Smart Feed Rate Enable Switch (If Equipped)

H94714
H94714-UN-27JAN10

A - Harvest Smart Feed Rate Enable Switch

B - Indicator Light

Harvest Smart feed rate enable switch (A) allows machine to enable Harvest Smart and allows operator to select two operating modes (Smart and Capacity) or to turn OFF system. Indicator light (B) turns ON indicating system is active.

Pressing Harvest Smart feed rate enable switch once causes screen to appear on display. With screen shown, press button again to change between the different modes (Smart, Capacity) and OFF.

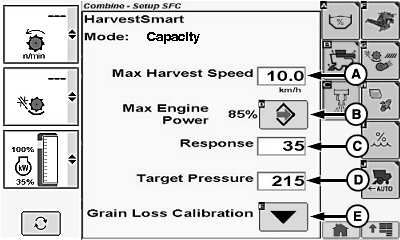

H94716
H94716-UN-05OCT10

A - Maximum Harvest Speed

B - Maximum Engine Power

C - Machine Response Rate

D - Rotor Target Pressure (Capacity Mode)

E - Grain loss Calibration Icon

Screen displays the following:

  • Maximum Harvest Speed (A)
  • Maximum Engine Power (B)
  • Machine Response Rate (C)
  • Rotor Target Pressure (Capacity Mode) (D)
  • Grain loss Calibration Icon (E)

Touch or press confirm switch when desired setting is highlighted.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired machine value is shown. Press confirm switch to save value.

Touchscreen Only: Enter desired machine value on numeric display. Touch enter/accept icon to save value.

Repeat procedure on remaining settings as desired.

OUO6075,000044D-19-20120627
