Spreader Speed Adjust Switch

Single Speed Spreader (If Equipped):

NOTE:

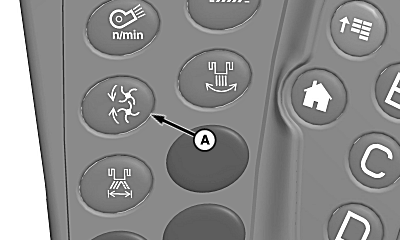

H94671-UN-27JAN10

A - Spreader Speed Adjust Switch

Spreader speed has a range of 0 rpm - 550 rpm. Increase spreader speed until desired spread width is reached.

Spreader speed adjust switch (A) increases or decreases the speed of both spreader disks from inside cab.

1. Press spreader speed adjust switch.

2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease spreader speed.

3. Display shows operator adjustment settings.

NOTE: Set spreader speed to zero when spreader is not being used.

Dual Speed Spreader (If Equipped):

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader operates at preset speed.

Spreader speed has a range of 0 rpm - 550 rpm. Increase spreader speed until desired spread width is reached.

Spreader speed adjust switch (A) increases or decreases the speed of both spreader disks together or independently from inside cab.

1. Spreader speed adjust switch:

   • Press switch once to adjust both spreader disk speeds.
   • Press switch twice to adjust left-hand spreader disk speed.
   • Press switch three times to adjust right-hand spreader disk speed.



2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease spreader speed.

3. Display shows operator adjustment settings.

NOTE: Set spreader speed to zero when spreader is not being used.

PowerCast Tailboard Spreader (If Equipped):

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader operates at preset speed.

Spreader speed has a range of 0 rpm - 550 rpm. Increase spreader speed until desired spread width is reached.

Spreader speed adjust switch (A) increases or decreases the speed of both spreader disks together or independently from inside cab.

1. Spreader speed adjust switch:

   • Press switch once to adjust both spreader disk speeds.
   • Press switch twice to adjust left-hand spreader disk speed.
   • Press switch three times to adjust right-hand spreader disk speed.



2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease spreader speed.

3. Display shows operator adjustment settings.

Advanced PowerCast Tailboard Spreader (If Equipped):

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader operates at preset speed.

Spreader speed has a range of:

• 350 - 550 rpm (Corn) (Default 500 rpm)
• 600 - 800 rpm (Small Grain) (Default 700 rpm)

Adjust values until desired spread width or offset is reached. See Residue Management Setup in CommandCenter Display Screens section for further information.

Spreader speed adjust switch (A) increases or decreases the shroud spread width percentage or offset on both spreader disks from inside cab.

Advanced PowerCast Tailboard Spreader uses independently adjustable shrouds to cover the spreader disks, which adjusts residue spread width and direction. When shrouds are adjusted to cover more of the spreader disk, the material is pushed further from the machine and in that direction.

Width Adjustment:

1. Press switch once to adjust spread width.

2. NOTE: Entering a range 0 to 100% moves both shrouds and evenly increases spread width on both spreader disks.

   Example: Machine is equipped with a 10.7 m (35 ft.) header with no wind. Default spreader width is 0%. With a 0% setting residue is spread 1 m (3 ft.) short from end of header. Press switch once and adjust spread width value. Increase spread width to 50% allowing both shrouds to move the same amount, which increases spread width on both the left and right to approximately the desired spread width.

   Touch or press confirm switch when desired digits are highlighted.

   NOTE: Repeat procedure until desired value is shown.

3. Touch or press confirm switch when enter/accept icon is highlighted to save desired value.

4. Display shows operator adjustment settings.

Offset Adjustment:

1. Press switch twice to adjust spreader offset.

2. NOTE: Entering a range 0 to 100% left or right (indicated by arrow on display) moves residue spread towards that direction.

   Touch or press confirm switch when desired digits are highlighted.

   NOTE: Repeat procedure until desired value is shown.

3. Touch or press confirm switch when enter/accept icon is highlighted to save desired value.

4. Display shows operator adjustment settings.
