Multi-Function Lever and Palm Adjustment

IMPORTANT:

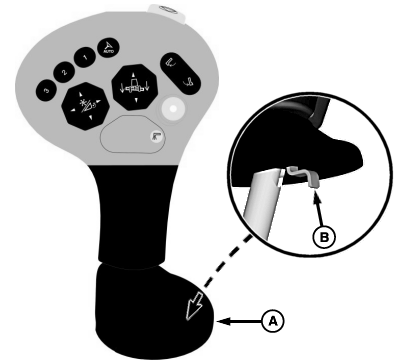

H94975
H94975-UN-01NOV10

A - Palm Rest

B - Lever

If hydrostatic charge pressure warning comes ON in display when multi-function lever is moved, check hydraulic oil level or replace filter, see your John Deere dealer if problem is not corrected.

Move multi-function lever forward to move machine forward or pull back slightly to the right and rearward to move machine rearward.

Palm rest (A) is adjustable to three detent positions. To raise or lower palm rest, pull lever (B) under palm rest and adjust palm rest to desired position.

OUO6075,0000459-19-20101213
