Unloading Auger Swing Switch

H94982-UN-01NOV10

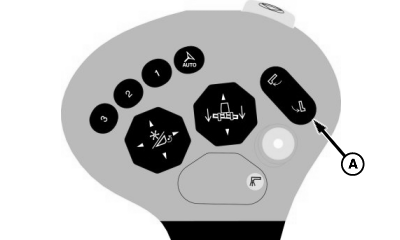

A - Unloading Auger Swing Switch

System Requirements:

• Road transport disconnect switch must be in field position.
• Operator must be seated.

Press top of unloading auger swing switch to swing auger out or press bottom of unloading auger swing switch to swing auger in.

Manual Control: Press and hold switch part way in until auger reaches desired position. Auger stops when switch is released.

Automatic Control: Press switch all the way in and release it. Auger will swing fully outward or inward without holding switch.

NOTE: Automatic auger swing function will not operate when unloading auger drive is engaged. When unloading auger is not used, it is recommended to swing unloading auger back to transport position.
