Header Raise/Lower Switch

H94984
H94984-UN-01NOV10

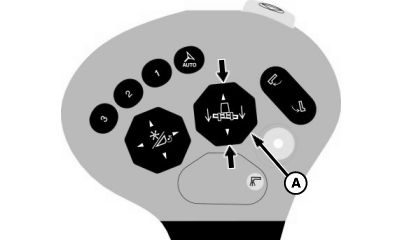

A - Header Raise/Lower Switch

Header raise/lower switch (A) allows operator to raise or lower the header.

NOTE: Header raise/lower switch has two detent positions. Pushing part way in on switch causes header to slowly raise or lower. Pushing all the way in will cause header to raise or lower at a faster rate.

    System Requirements:

  • Road transport disconnect switch must be in field position.
  • Operator must be seated.

Press and hold top of header raise/lower switch to raise header or press and hold bottom of header raise/lower switch to lower header.
