Lateral Tilt Switch

NOTE:

H94985
H94985-UN-01NOV10

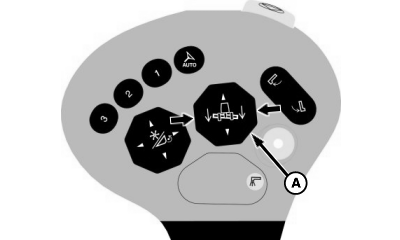

A - Lateral Tilt Switch

On combines equipped with a level-land or lateral tilt feeder house operating in conjunction with a 600D Draper platform that is equipped with the Dual Zone Float attachment, the lateral tilt switch provides independent adjustment of the float pressure in the right and left float arm and gauge wheel (if equipped) cylinders.

Lateral tilt switch (A) allows operator to tilt feeder house left or right.

    System Requirements:

  • Road transport disconnect switch must be in field position.

Press right side of lateral tilt switch to tilt feeder house to the right or press left side of lateral tilt switch to tilt feeder house to the left.
