Platform Reel Lift/Reel Fore and Aft Switch

NOTE:

H94986
H94986-UN-01NOV10

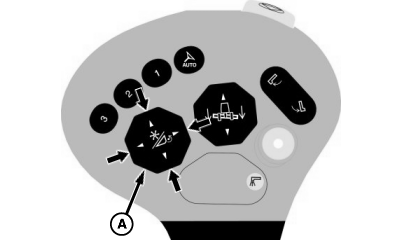

A - Reel Lift/Reel Fore and Aft Switch

Switch is also used to control corn head backshaft speed and adjustable deck plate spacing (if equipped). Refer to Corn Head Backshaft Speed and Adjustable Deck Plate Spacing Switch in this section for further information.

Reel lift/reel fore and aft switch (A) allows operator to control the position of the reel.

    System Requirements:

  • Road transport disconnect switch must be in field position.

Push and hold top of switch to raise reel or press and hold bottom of switch to lower reel.

Push and hold left side of switch to move reel forward or press and hold right side of switch to move reel rearward.
