Header Activation Buttons

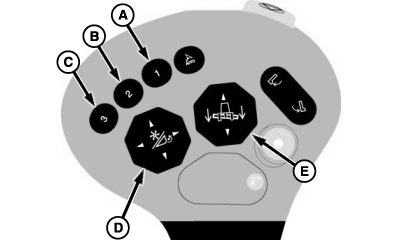

H94987
H94987-UN-23NOV09

A - Activation Button 1

B - Activation Button 2

C - Activation Button 3

D - Reel Lift/Reel Fore and Aft Switch

E - Header Raise/Lower and Manual Lateral Tilt Switch

When header activation buttons (A), (B) or (C) are pressed the following functions are performed:

  • Header Height Resume
  • Header Height Sensing
  • Lateral Tilt Control
  • Reel Position Resume
  • Deck Plate Position Resume
  • Active Header Float

The electronic control system moves header back to preselected position chosen by operator.

NOTE: Header positions obtained by pressing activation buttons may be overcome by pressing reel raise/lower or reel fore and aft switch (D) or header raise/lower and lateral tilt switch (E). Once activation buttons are manually overcome, press desired activation button to reactivate.

    System Requirements:

  • Properly equipped header is connected.
  • Engine is running.
  • Road transport disconnect switch must be in field position.
  • Header Height Resume, Header Height Sensing or Active Header Float mode are enabled.
  • Header is engaged.

Pressing header activation buttons activates system. Header control system takes control and moves header to operator selected position.
