Discharge Swap Switch (If Equipped)

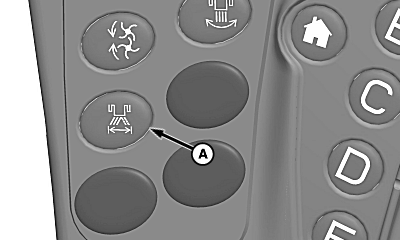

H94672-UN-27JAN10

A - Discharge Swap Switch

Dual Speed Spreader (If Equipped): Discharge swap switch (A) automatically adjusts spreader speed by speeding up or slowing down spreader disks.

PowerCast Tailboard Spreader (If Equipped): Discharge swap switch (A) automatically adjusts spreader speed by speeding up or slowing down spreader disks.

Advanced PowerCast Tailboard Spreader (If Equipped): Discharge swap switch (A) automatically adjusts spreader shrouds covering the spreader disks.

NOTE: Example: If wind is blowing chaff or straw towards uncut crops or operator has reached end row and travels back the opposite direction, press switch to:

• Move chopper vanes automatically to opposite side.
• Move spreader speeds automatically to opposite side.
• Move spreader shrouds automatically to opposite side.
