Handrails and Right-Hand Landing Access

CAUTION:

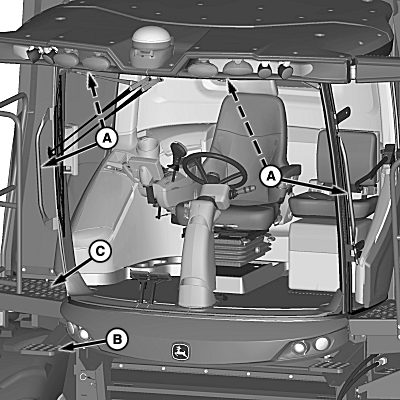

H94810-UN-15JUL10

A - Handrails

B - Step

C - Landing

IMPORTANT: Close cab door before using handrail.

Do not manually move wiper arm, this could cause damage to wiper mechanism.

Use ladder and landing to clean left side of cab.

Access feeder house by using step on left-hand side.

Use handrails (A) located on either side of cab and at top of cab.

Stand on raised feeder house to clean front cab window and service headlights or wiper.

Use step (B) and landing (C) to clean right side of cab.
