Automatic Header Control (AHC) Settings

NOTE:

H96245
H96245-UN-03MAY10

Header Setup Icons

H94938
H94938-UN-05OCT10

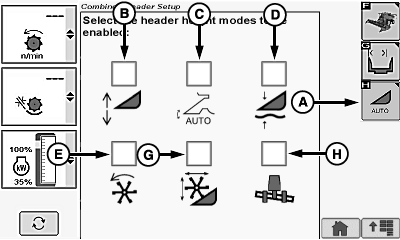

Corn Head Display

H94937
H94937-UN-05OCT10

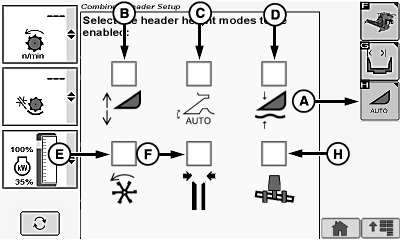

Platform Display

Header setup icon changes based on type of header connected to machine.

Touch or press confirm switch when header setup icon is highlighted.

Touch or press confirm switch when automatic header height modes icon (A) is highlighted.

Touch or press confirm switch when one of the following is highlighted:

  • Header Height Sensing Enable (B)
  • Header Height Resume Enable (C)
  • Active Header Float Enable (D)
  • Dial-A-Speed Enable (E)
  • Deck Plate Position Resume Enable1 (F)
  • Reel Position Resume Enable2 (G)
  • Lateral Tilt Enable3 (H)

Box displays a checkmark indicating which icons will be enabled or disabled displayed on cornerpost.

NOTE: If boxes are grayed out that option is not available on your machine.

1 If connected to a corn head with adjustable deck plates.
2 If connected to a platform machine with a reel.
3 If equipped with Lateral Tilt.
