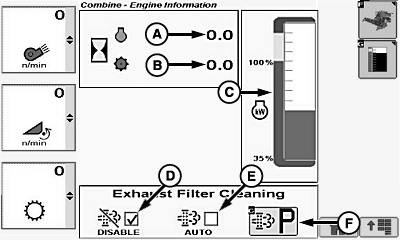

Engine Information Screen

H94939
H94939-UN-28APR10


Engine Settings:

  • Engine Hours (A)
  • Separator Hours (B)
  • Engine Power Meter (C)
    • Green Region (35 to 100%)
    • Yellow Region (101 to 107%)
    • Red Region (108 to 114%)

    IMPORTANT: If indicator moves into red region, engine power is maximized and machine could potentially stall. Reduce load on machine until indicator moves back into green and yellow regions.

  • Disable Exhaust Filter Cleaning Mode (D) 1
  • AUTO Exhaust Filter Cleaning Mode (E) 1
  • Parked Exhaust Filter Cleaning Icon (F) 1

1 Appears when equipped with Interim Tier 4/Stage III B engines.

OUO6075,00004C0-19-20110321
