VisionTrak Performance Monitor— Operating

H94473-UN-31MAR10

Combine Setup Icon

H94944-UN-05OCT10

H94945-UN-06APR10

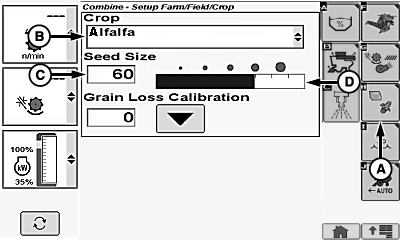

A - Crop Setup Icon

B - Crop Menu

C - Seed Size

D - Bar Graph

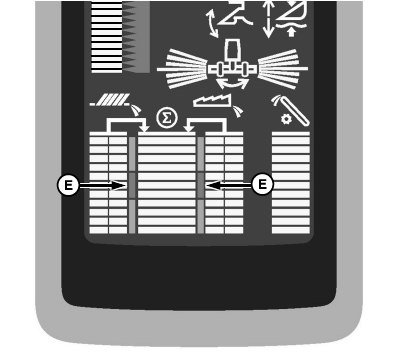

E - Normal Range

• Engine is running.
• Road transport disconnect switch is in field position.
• Header and separator are engaged.

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when crop setup icon (A) is highlighted.

Touch or press confirm switch when crop menu (B) is highlighted.

Crop menu displays the following:

Alfalfa	Lentils	Rye
Barley	Lupins	Safflower
Barley - Spring 1	Millet	Sorghum
Barley - Winter 1	Mustard	Soybeans
Canola	Navy Beans	Sunflower
Chickpeas	Oats	Triticale 1
Corn	Peas	Wheat-Spring
Edible Beans	Popcorn	Wheat-Winter
Flax	Rape Seed 1
Grass Seeds	Rice

Once desired crop is chosen, touch or press confirm switch.

Touch or press confirm switch when seed size (C) is highlighted.

Non-Touchscreen or Touchscreen: Rotate selection dial until desired seed size value is shown. Press confirm switch to save value.

Touchscreen Only: Enter desired seed size value on numeric display. Touch enter/accept icon to save value.

Desired seed size is represented on bar graph (D).

NOTE: Setting seed size sensitivity will increase or decrease sensitivity of grain loss sensors.

Small Seed (Default 38)	Medium Seed (Default 50)	Large Seed (Default 70)
Alfalfa	Barley	Chickpeas
Canola	Barley - Spring 1	Corn
Flax	Barley - Winter 1	Edible Beans
Grass Seeds	Lentils	Lupins
Millet	Popcorn	Navy Beans
Mustard	Safflower	Peas
Oats	Sorghum	Soybeans
Rape Seed 1	Wheat-Spring	Sunflowers
Rice	Wheat-Winter
Rye
Triticale 1

Set the following on display:

1. Set desired number for closest grain size.

2. Adjust machine and header to acceptable loss levels for particular crop and condition.

   NOTE: Ignore center bar graph on cornerpost at this time.

3. Operate machine at acceptable loss level.

4. Touch or press confirm switch when calibration icon is highlighted to center total loss in the normal range (E). Bar graph indicates machine is operating at total loss levels acceptable by operator in step 3.

   NOTE: Bar graph is now a visual guide. Operator can refer to display periodically to know when an increase or decrease in total loss amount occurs. More detailed monitoring can be obtained by monitoring loss levels of the cleaning shoe and separator.

5.
   H87033-UN-30NOV06

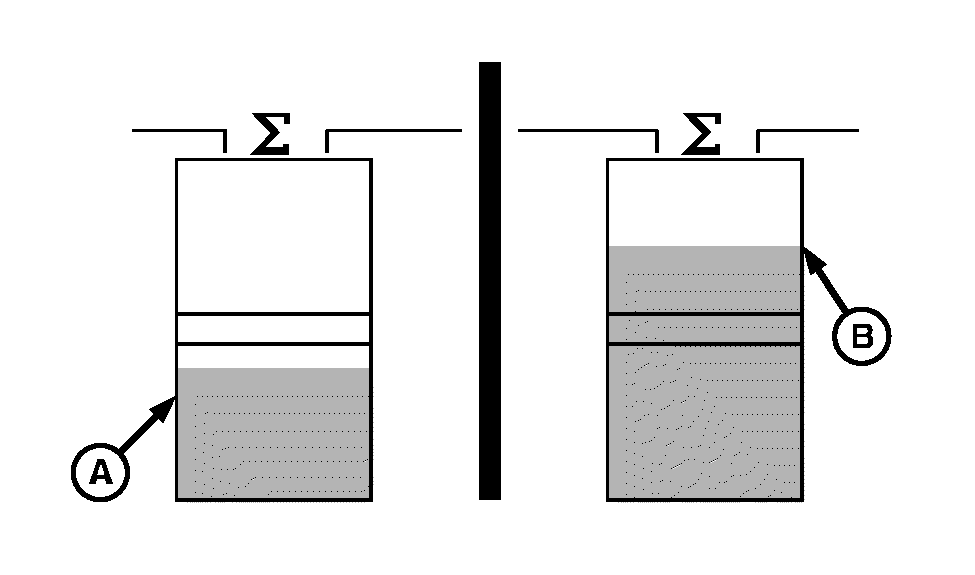

   A - Downward

   B - Upward

   If bar graph moves downward (A), machine is not operating at maximum productivity. Machine is either incorrectly adjusted for acceptable loss levels or moving at too slow of a ground speed. Make adjustments as needed to bring bar graph back into middle of display area.

---




6. If bar graph moves upward (B), machine is either incorrectly adjusted for an acceptable loss level or is moving too fast a ground speed. Make adjustments as needed to bring bar graph back into middle of display area.

7. When crop conditions change during the day (straw moisture, dew, etc.), make occasional loss checks to determine if readjustment is necessary.

   NOTE: When machine encounters a ”slug”, middle bar graph will fluctuate upward (15 to 20 seconds) and return to previous reading. Ignore these fluctuations when this occurs.
