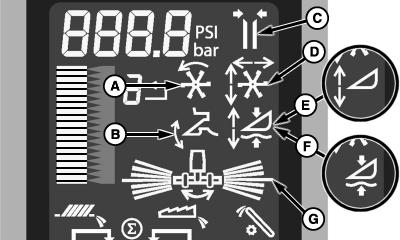

Active Header Control Display

H98580-UN-01DEC10

Header Height Resume (B): allows operator to select position of header relative to machine chassis and return to that position automatically.

Deck Plate Position Resume (C): allows operator to select position of deck plates (if equipped) and return to that position automatically.

Reel Position Resume (D): allows operator to select reel height and reel fore/aft position and return to that position automatically.

Header Height Sensing (E): allows operator to select position of header relative to ground and return to that position automatically.

Header Height Sensing (HydraFlex) (E): allows operator to adjust cutterbar ground pressure, or cutterbar weight, and return to that setting automatically. HydraFlex works in conjunction with Header Height Sensing to maintain a header position relative to the ground, follow ground contour, and return to that position automatically.

Active Header Float (F): allows a rigid header to be operated in contact with ground and maintain a set contact pressure. Operator selects how firmly header contacts ground and returns to that pressure automatically.

Lateral Tilt (G): allows operator to maintain header position relative to ground. Sensors at each end of header measure the distance to the ground. Header tilts to equalize distances to ground at each end of header. If equipped with left and right Header Height Sensors and Lateral Tilt is active, systems work together to maintain the closest position of the cutterbar relative to the ground.
