Header Height Resume

NOTE:

H96245-UN-03MAY10

Header Setup Icons

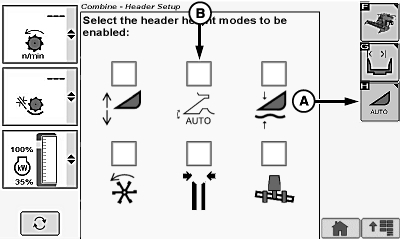

H95934-UN-05OCT10

Corn Head Display

H95933-UN-05OCT10

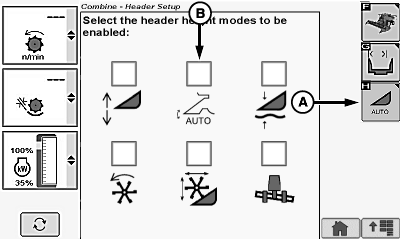

Draper/Platform/Belt Pickup Display

A - Automatic Header Height Modes Icon

B - Header Height Resume Icon

Allows operator to select position of feeder house relative to machine and return to that position automatically.

System must be calibrated with each header that is used (see Calibration Procedures section).

Activation buttons 1, 2 or 3 located on the multi-function lever are used to select one of the three different programmable header heights.

NOTE: If multiple modes are enabled, refer to Activation Button Mode Combinations in this section for further information.

Enable/Disable System:

Touch or press confirm switch when header setup icon is highlighted.

Touch or press confirm switch when automatic header height modes icon (A) is highlighted.

Touch or press confirm switch when Header Height Resume icon (B) is highlighted.

NOTE: Checkmark appears indicating system is enabled or disappears indicating system is disabled.

Operation:

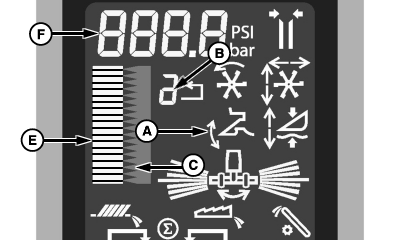

H98582-UN-14OCT10

H95079-UN-27JAN10

H95077-UN-18DEC09

A - Header Height Resume Icon

B - Activation Button Number

C - Height Setpoint

D - Header Height Control Dial

E - Bar Graph

F - Numeric Display

G - Header Raise/Lower Switch

• Properly equipped header is connected to machine.
• Engine is running.
• Road transport disconnect switch is in field position.
• Header Height Resume system enabled.
• Header is engaged.

Activate Header Height Resume by pressing activation buttons 1, 2 or 3 on multi-function lever.

Activation button number (B) on display indicates which activation button was selected.

Header Height Resume icon (A) appears on display indicating system is active.

To change height setpoint (C) of activation buttons, press desired activation button and adjust height using active header height control dial (D).

Turn active header height control dial towards plus (+) symbol to raise header and setpoint or towards minus (-) symbol to lower header and setpoint.

Bar graph (E) and numeric display (F) show the header's relative position to the ground based on the Header Height Resume sensor linked to the feeder house.

Manually adjusting header height using header raise/lower switch (G) deactivates system.

Press activation buttons 1, 2 or 3 to reactivate system. Header automatically moves to preselected height.
