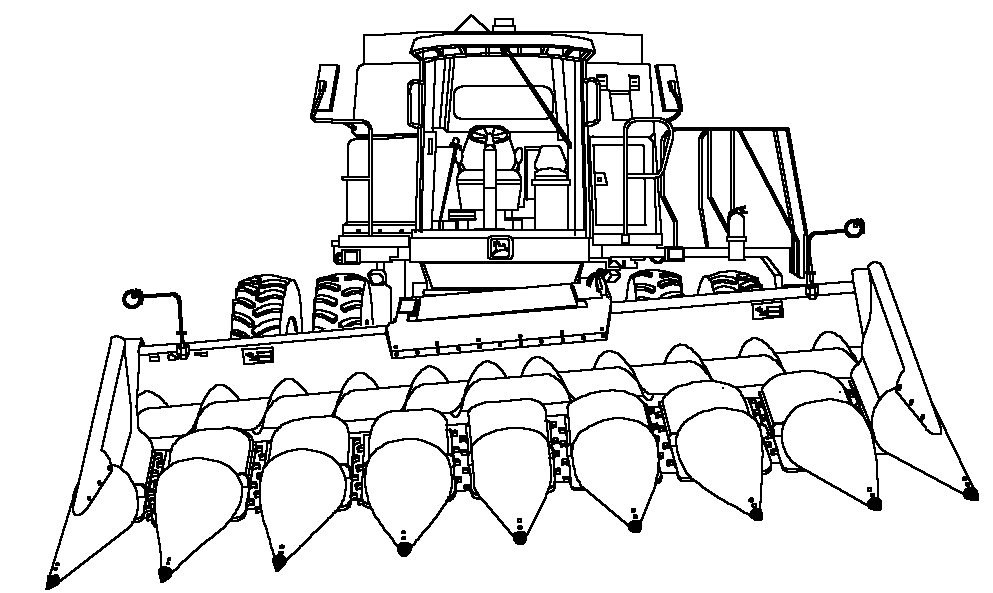

Lateral Tilt System (Optional)

NOTE:

H52277-UN-04MAR99

H96245-UN-03MAY10

Header Setup Icons

H95939-UN-05OCT10

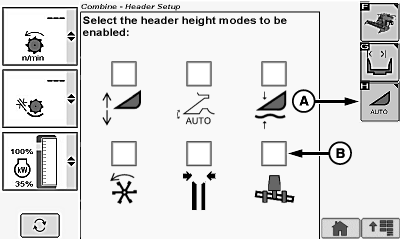

Corn Head Display

H95940-UN-05OCT10

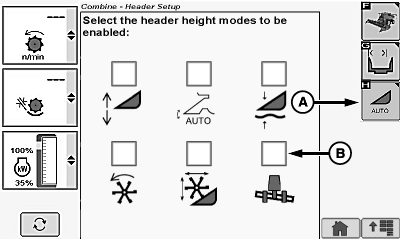

Draper/Platform/Belt Pickup Display

A - Automatic Header Height Modes Icon

B - Lateral Tilt Icon

Allows operator to maintain header position relative to ground. Sensors are used to determine the height at each end of the header. The lateral tilt system tilts the header to equalize the distances to the ground at each end of the header. The lateral tilt system uses a special feeder house that allows the header to tilt left and right.

If equipped with left and right Header Height Sensors and Lateral Tilt is active, systems work together to maintain the closest position of the cutterbar relative to the ground.

System must be calibrated with each header that is used (see Calibration Procedures section).

Activation buttons 1, 2 or 3 located on the multi-function lever are used to activate the system.

Enable/Disable System:

Touch or press confirm switch when header setup icon is highlighted.

Touch or press confirm switch when automatic header height modes icon (A) is highlighted.

Touch or press confirm switch when lateral tilt icon (B) is highlighted.

NOTE: Checkmark appears indicating system is enabled or disappears indicating system is disabled.

Operation:

H98585-UN-14OCT10

H95087-UN-01NOV10

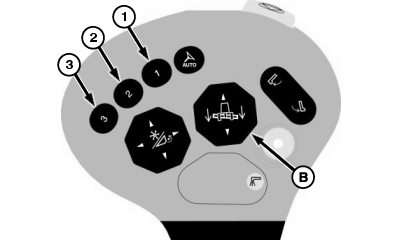

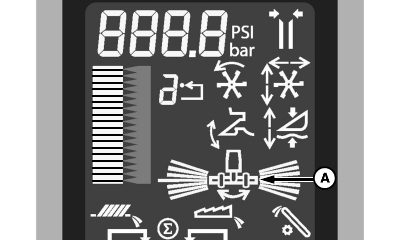

A - Lateral Tilt Icon

B - Lateral Tilt Switch

• Properly equipped header is connected to machine.
• Engine is running.
• Road transport disconnect switch is in field position.
• Header was calibrated.
• Header is engaged.
• Lateral tilt system enabled.

Activate lateral tilt by pressing activation buttons 1, 2 or 3 on multi-function lever.

Activation button number on display indicates which activation button was selected.

Lateral tilt icon (A) appears on display indicating system is active.

NOTE: Pressing lateral tilt switch (B) overrides system. When switch is released within five seconds, system returns to automatic mode.

Press right side of switch to tilt header to the right or press left side of switch to tilt the header to the left.

Press activation buttons 1, 2 or 3 to reactivate system. Header automatically returns to automatic mode.
