Header Adjust Switch

H94660
H94660-UN-27JAN10

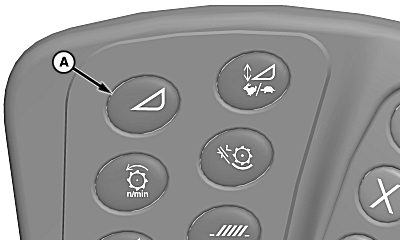

A - Header Adjust Switch

Press header adjust switch (A) as needed to adjust the following.


Cutterbar Pressure Adjust (Press Once)

NOTE: Only works on HydraFlex platforms.

Cutterbar pressure adjust allows operator to increase or decrease the amount of pressure in the cutterbar.

  1. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease pressure and setpoint.

  2. Display shows operator adjustment settings.


Float Position Adjust Switch (Press Once)

NOTE: Only works on 600D Drapers.

Header Height Sensing (off the ground) must be enabled to adjust float position. This is not available with Header Height Sensing (on the ground).

Header Height Sensing must not be enabled to adjust float pressure.

Float position adjust allows operator to increase or decrease the amount of pressure in the gauge wheel and float frame cylinders.

  1. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease gauge wheel and float frame cylinders pressure and setpoint.

    • Values are adjustable from 1 to 10 with a default of 5.
    • Level land machines should have a setting of 3 or lower.
    • Lateral tilt machines should start with a setting of 5. NOTE: Value should be set lower for issues where cut height is not remaining level (left to right). Steeper slopes should have a lower value.

  2. Display shows operator adjustment settings.


Belt Speed Adjust (Press Twice)

NOTE: Only works on drapers and belt pickups.

Draper belt speed adjust allows operator to increase or decrease belt speed.

  1. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease belt speed.

  2. Display shows operator adjustment settings.


Draper Cutterbar Tilt Adjust (Press Three Times)

NOTE: Only works on 600 series drapers.

Draper cutterbar tilt adjust allows operator to increase or decrease cutterbar angle.

  1. Touch plus (+) or minus (-) symbol or rotate selection dial to adjust cutterbar anlge.

    • Increase tilts cutterbar down.
    • Decrease tilts cutterbar up.

  2. Display shows operator adjustment settings.
