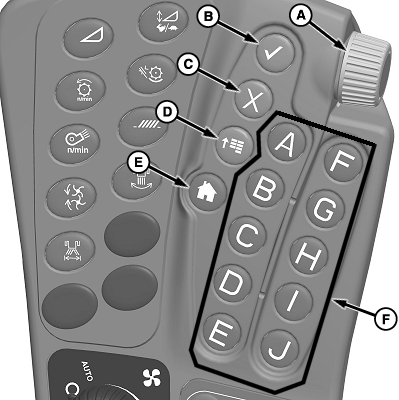

Operator Interface Controls

H94960-UN-27JAN10

A - Selection Dial

B - Confirm Switch

C - Cancel Switch

D - Main Menu Switch

E - Home Switch

• Selection Dial (A): allows operator to move the ”focus” from item to item on the CommandCenter display. As item is highlighted, a ”tool tip” will appear describing what the highlighted object is. Selection dial is also used for data entry to increase/decrease numeric values.
  • Rotating selection dial forward raises input box values.
  • Rotating selection dial wheel rearward lowers input box values.
• Confirm Switch (B): allows operator to select desired ”focus” area on CommandCenter display or to confirm a highlighted action.
• Cancel Switch (C): allows operator to cancel or deselect an action on the display at anytime.
• Main Menu Switch (D): is used to change the active ”application” that the CommandCenter display is running. Items or applications, in the menu included:
  • Message Center
  • Display Settings
  • Layout Manager
  • Combine
  • Performance Monitor
  • GreenStar
  • Video
• Home Switch (E): allows operator to return to home page.
• Shortcut Switches (F): allows operator to select corresponding icon on secondary display unit or GreenStar display (if equipped).
