Light Switches

NOTE:

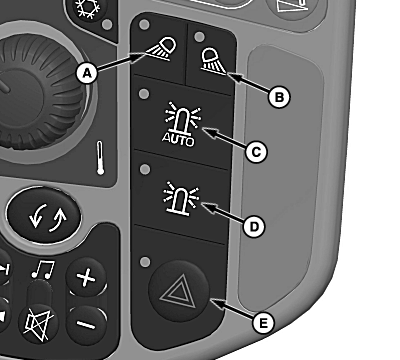

H94962-UN-27JAN10

Front Stubble Light Switch (A):

Press switch to turn front stubble lights ON/OFF.

• NOTE: If road lights are ON, stubble lights fascia lights and rear discharge lights will not be able to be turned ON.
  Stubble lights provide operator with area lighting behind header for night operation and low light conditions.

Rear Discharge Light Switch (B):

Press switch to turn rear discharge lights ON/OFF.

• NOTE: If road lights are ON, stubble lights fascia lights and rear discharge lights will not be able to be turned ON.
  Rear discharge lights provide operator with rear area lighting for night operation and low light conditions.

Auto Beacon Light Switch (C):

Press switch to turn auto beacon lights ON/OFF.

• Beacon lights illuminate and provide a signal to the grain cart operator that grain tank is 3/4 full or is full and is ready to be unloaded.

Beacon Lights Switch (D):

Press switch to turn beacon lights ON/OFF.

• Beacon lights are located on both sides of the machine at the front and rear give warning to other drivers when transporting on roadways.

Hazard Light Switch (E):

Press switch to turn hazard warning lights ON/OFF.

• Hazard warning lights are located on both sides of the machine at the front and rear give warning to other drivers when transporting on roadways.
