Coolant Level
IMPORTANT:

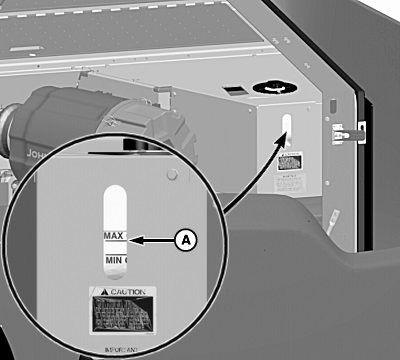

H95314-UN-11FEB10
A - Max Cold Line
A special cap is used on the surge tank. If cap is damaged or missing, it must be replaced by an equivalent cap.Allow engine to cool. Coolant level in surge tank should be at ”Max Cold” line (A).
NOTE: Coolant level must be between ”Max Cold” and ”Min Cold” lines. Add coolant as needed if coolant is below ”Min Cold” line.
|
