Engine Air Scoop

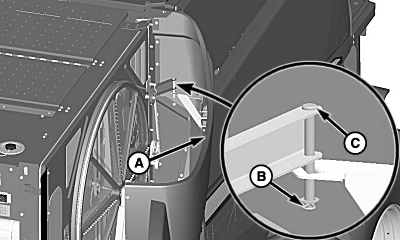

H99447-UN-15DEC10

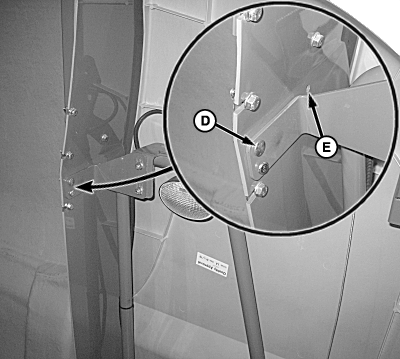

H102364-UN-21JUN11

A - Engine Air Scoop

B - Spring Pin

C - Pin

D - Cap Screw and Lock Nut

E - Transport Hole

Field Position:

1. Remove spring pin (B) and pin (C).
2. Move air scoop outward until hole aligns with bracket.
3. Remove cap screw and lock nut (D).
4. Move air scoop outward until hole aligns with bracket as shown.
5. Install previously removed hardware to retain air scoop in place.
6. Clean rotary screen and radiator of crop debris or foreign material.

IMPORTANT: Engine air scoop must be placed into transport position when local roadway restrictions apply. Follow your local country regulations.

Verify engine air scoop (A) is inward for transport position.

Transport Position:

1. Remove spring pin (B) and pin (C).
2. Move air scoop inward until hole aligns with bracket.
3. Remove cap screw and lock nut (D).
4. Move air scoop inward until hole aligns with transport hole (E).
5. Install previously removed hardware to retain air scoop in place.
6. Clean rotary screen and radiator of crop debris or foreign material.
