Stopping the Engine

1.

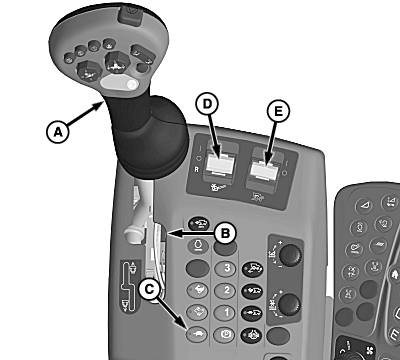

   H95322-UN-11FEB10

   A - Multi-Function Lever

   B - Neutral Position

   C - Low Engine Speed Switch

   D - Header Engage Switch

   E - Separator Engage Switch

   Lower header or reel completely to ground.

---




2. Move multi-function lever (A) to neutral position (B) and press low engine speed switch (C).

3. Shut OFF header engage switch (D) and separator engage switch (E).

4. IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

   Before stopping an engine that was operating at working load, idle engine two—three minutes to allow turbocharger to cool.

5. CAUTION: Set parking brake and remove key before leaving machine.

   Turn key switch OFF.
