Fuel Precleaner Filter—Cleaning

NOTE:

H98377
H98377-UN-30SEP10

Fuel Precleaner Filter

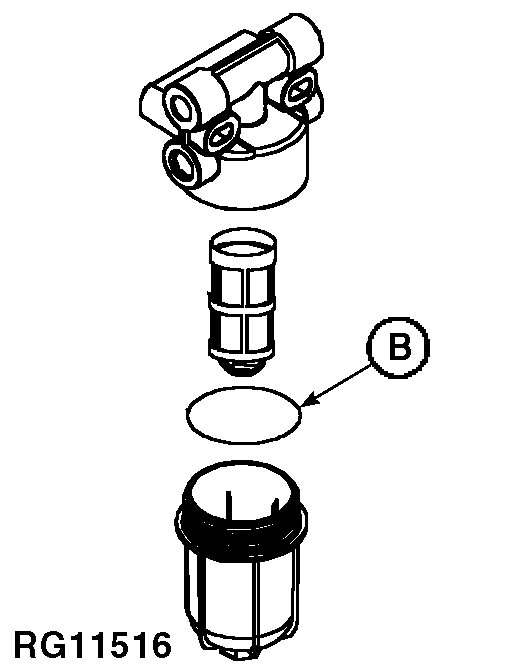

RG11516
RG11516-UN-10NOV00

Fuel Precleaner Parts

A - Precleaner Bowl

B - O-ring

Do not clean fuel precleaner and change primary and secondary fuel filters at the same time. Doing so makes it difficult to restart machine. Perform this procedure, then run engine before changing primary and secondary fuel filters.

Clean fuel precleaner filter if buildup is visible on filter screen or if a diagnostic trouble code appears. Reset code after cleaning filter.

  1. Start engine and run three—five minutes at low idle if machine had not been previously running.

  2. Shut OFF engine and close valve at bottom of fuel tank to prevent drain back within supply line.

  3. Thoroughly clean fuel precleaner assembly and surrounding area.

  4. Remove precleaner bowl (A).

  5. Clean filter screen and precleaner bowl. Inspect O-ring (B).

  6. Install screen and tighten precleaner bowl.

  7. Open valve at bottom of fuel tank to fill precleaner.

  8. Start engine and run three—five minutes at low idle.

OUO6075,0000593-19-20101027
