Every 10 Hours

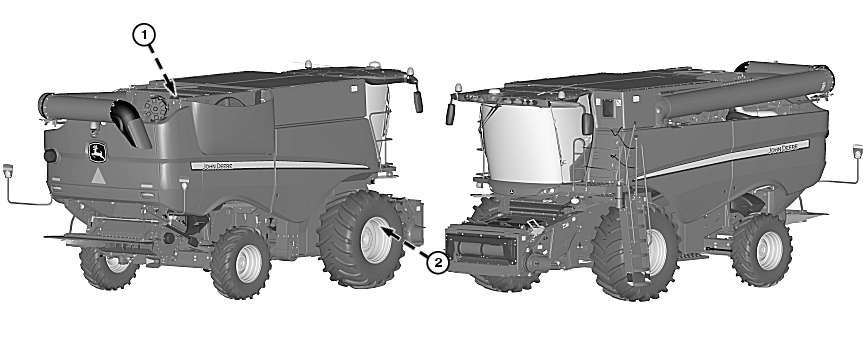

1. IMPORTANT:


   H96419-UN-18MAY10


   H97449-UN-30JUL10

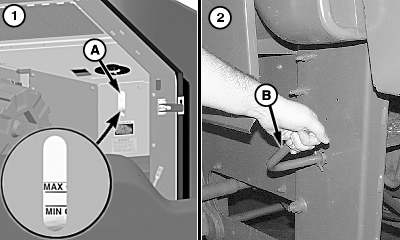

   A - Surge Tank

   B - Lever

   Service times are for average conditions. Service more often if machine is used in extreme conditions.

   Surge Tank - Check engine coolant level in surge tank (A) with engine cold. Level must be up to ”Max Cold” line.

   NOTE: Coolant level must be between ”Max Cold” and ”Min Cold” lines. Add coolant as needed if coolant is below ”Min Cold” line.

---




2. Stone trap - Remove quick-lock pin and dump stone trap with lever (B). Close stone trap and retain with quick-lock pin.
