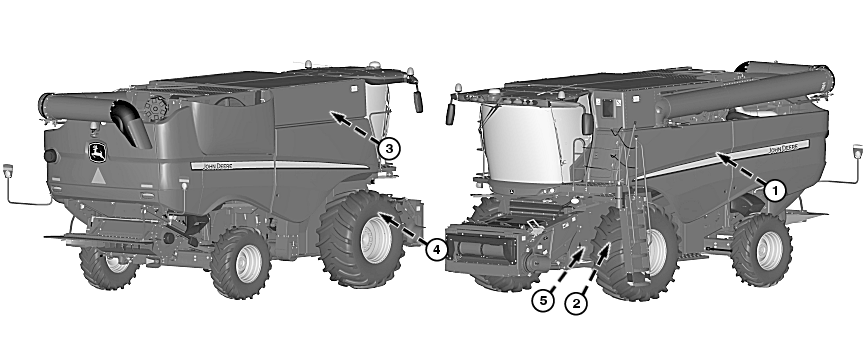

Every 400 Hours

1.
   H96433-UN-02DEC10


   H86807-UN-19APR07


   H97471-UN-30JUL10


   H99263-UN-02DEC10

   A - Dipstick

   B - Plug

   C - Dipstick

   D - Driveshaft Coupler

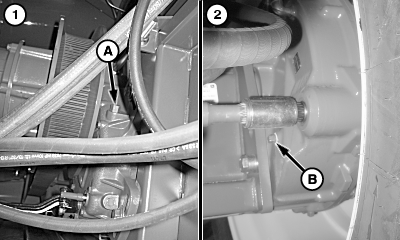

   Separator Drive - Remove dipstick (A) and check oil level. Oil level should be between grooves on dipstick. Add oil as needed.

---




2. Final Drive Oil - Remove plug (B) and check oil level (both sides). Oil should be within 12 mm (1/2 in.) of bottom of hole. Add oil as needed.

3. NOTE: Loading auger gearcase does not need to be drained.

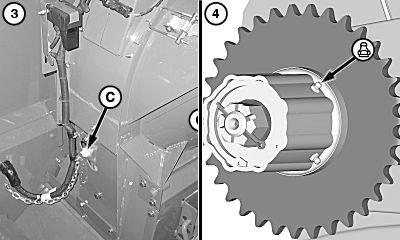

   Loading Auger Gearcase - Check oil level with dipstick (C) and add oil as needed.

4. Feeder House Slip Clutch - Grease fitting on upper feeder house slip clutch, until grease is forced out past seal.

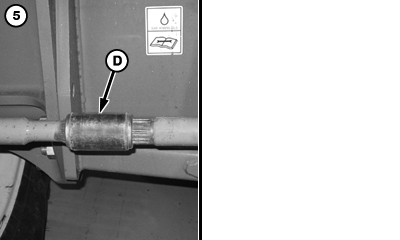

5. Final Drive Couplers - Remove driveshaft coupler (D) and driveshaft (both sides). Clean spline areas and apply anti-seize compound to both splined ends of driveshaft.
