Quick Stop Switch

CAUTION:

H97774
H97774-UN-01NOV10

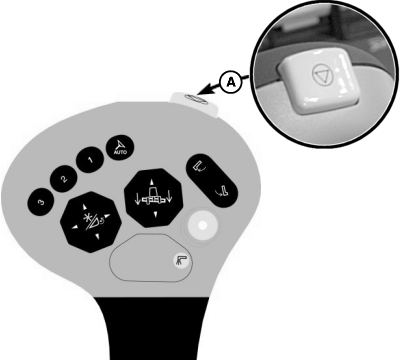

A - Quick Stop Switch

ProDrive Machines: Pressing quick stop switch with separator engaged causes machine to quickly stop. It is always recommended to wear your seat belt to avoid serious injury.

IMPORTANT: Header drive can be disengaged by this switch in case of malfunctions.

Quick stop switch (A) allows operator to simultaneously shut OFF the following at the same time in case of an emergency:

  • Header Engage
  • Unloading Auger Drive
  • Unloading Auger Swing
  • Grain Tank Covers (If Equipped)
  • Power Folding Auger (If Equipped)
  • ProDrive (propulsion movement quickly stops) (If Equipped)

Pushing unloading auger drive switch on multi-function lever restarts the unloading auger drive. To engage header drive, turn header engage switch OFF and back ON.
