Road Transport Disconnect Switch

CAUTION:

H94726
H94726-UN-27JAN10

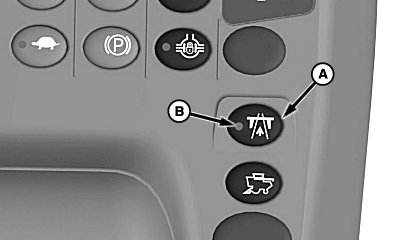

A - Road Transport Disconnect Switch

B - Indicator Light

ProDrive Machines: Pressing quick stop switch with separator engaged causes machine to quickly stop. It is always recommended to wear your seat belt to avoid serious injury.

NOTE: Machine will not enter road mode if separator is engaged. Warning alarm message appears indicating separator is engaged. Shut OFF separator to engage road transport disconnect switch.

Road transport disconnect switch (A) must be in road position when transporting machine on roadway.

When road transport disconnect switch is pressed, indicator light (B) turns ON indicating switch is in road position. Road transport disconnect switch prevents the following functions:

  • Separator Engage
  • Header Engage
  • Header Raise/Lower
  • Header Height Resume
  • Header Height Sensing
  • Lateral Tilt
  • Reel Raise/Lower and Reel Fore/Aft
  • Unloading Auger
  • Auger Swing
  • Power Folding Auger (If Equipped)
  • Grain Tank Covers (If Equipped)

After transporting machine on roadway and field operation is desired, press road transport disconnect switch for two seconds allowing indicator light to turn OFF and allowing desired switch functions to operate again.
