Push Button Shift Gear Switches (If Equipped)

NOTE:

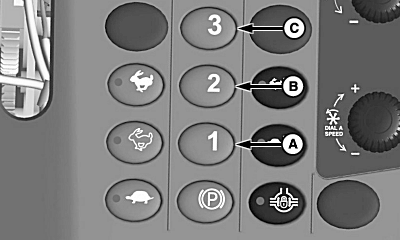

H95208-UN-27JAN10

A - Push Button Shift 1st Gear Switch

B - Push Button Shift 2nd Gear Switch

C - Push Button Shift 3rd Gear Switch

Machine must be stopped and multi-function lever moved to neutral position before selecting desired gear.

Push button shift gear switches (A, B, or C) are used to control transmission ground speed electronically. Press desired switch to increase or decrease machines ground speed. Display shows which switch is pressed and flashes until transmission electronically shifts.
