Brightness Level and Boundary Box Color

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95849-UN-31MAR10

Display
Application Icon

Touch or press confirm switch when display settings icon is highlighted.

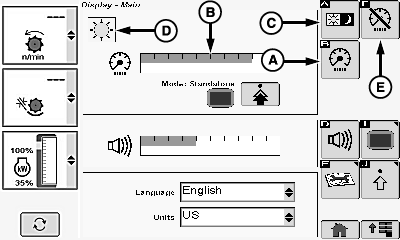

Brightness Level:

H95921-UN-05OCT10

A - Brightness Icon

B - Brightness Bar Graph

C - Day/Night Icon

D - Day/Night Settings

E - Dim Mode Icon

Touch or press confirm switch when brightness icon (A) is highlighted.

With brightness bar graph (B) highlighted, touch plus (+) or minus (-) symbol or rotate selection dial to select brightness level of screen.

• Increase bar graph to brighten screen.
• Decrease bar graph to darken screen.

Day/Night Settings:

NOTE: Day/Night icon only appears in standalone mode.

Allows operator to toggle between day or night settings.

Touch or press confirm when day/night icon (C) is highlighted to toggle between day or night settings (D).

Dim Mode:

Allows operator to quickly darken screen to reduce glare.

Touch or press confirm switch when dim mode icon (E) is highlighted to quickly darken screen.

NOTE: Dim mode temporarily darkens screen to reduce glare. Screen resumes normal brightness when an alarm exists or any armrest switch is selected.

H95883-UN-05OCT10

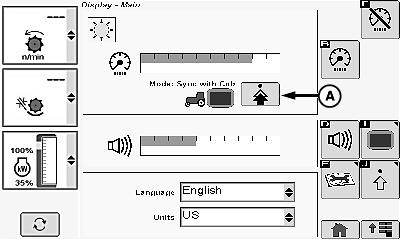

Sync with Cab Mode

H95884-UN-05OCT10

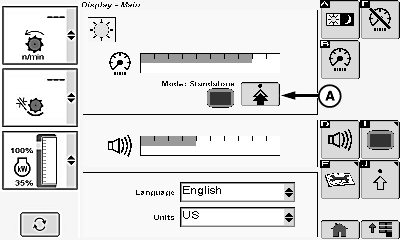

Standalone Mode

H95885-UN-05OCT10

A - Advanced Settings Icon

B - Sync With Cab Box

C - Balance Bar Graph

D - Cancel Icon

E - Enter/Accept Icon

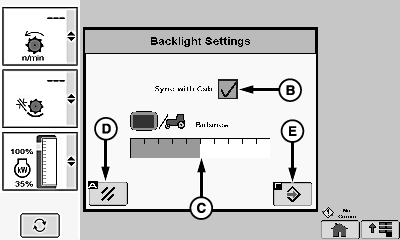

Sync With Cab/Standalone Modes:

Allows operator to synchronize screen with cab lighting or allows screen to work independently from cab lighting.

Touch or press confirm switch when advanced settings icon (A) is highlighted to advance to next screen.

Touch or press confirm switch when sync with cab box (B) is highlighted.

• Checked - synchronizes screen and cab backlighting together.
• Unchecked - screen and cab backlighting work independently from each other.

Touch or press confirm switch when balance bar graph (C) highlighted.

Touch plus (+) or minus (-) symbol or rotate selection dial to select balance level of screen.

• Increase bar graph to brighten backlighting.
• Decrease bar graph to darken backlighting.

NOTE: Touch or press confirm switch when cancel icon (D) is highlighted to clear balance levels.

Touch or press confirm switch when enter/accept icon (E) is highlighted to return to previous screen.

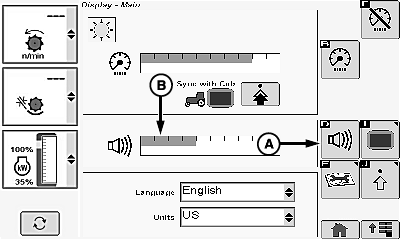

Alarm Volume Setting:

H95739-UN-05OCT10

A - Volume Icon

B - Alarm Volume Bar Graph

Touch or press confirm switch when volume icon (A) is highlighted.

Touch or press confirm switch when alarm volume bar graph (B) is highlighted.

Touch plus (+) or minus (-) symbol or rotate selection dial to adjust alarm volume.

• Increase bar graph to increase alarm volume.
• Decrease bar graph to decrease alarm volume.

H95737-UN-05OCT10

H95738-UN-05OCT10

A - Advanced Settings Icon

B - Highlight Icon

C - Green Highlight

D - Blue Highlight

E - Red Highlight

F - Display Icon

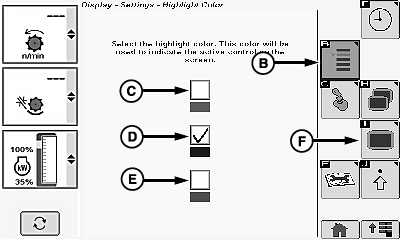

Boundary Box Color Settings:

Allows operator to choose color of boundary box.

NOTE: Color defaults to red at initial power-up of screen.

Touch or press confirm switch when advanced settings icon (A) is highlighted.

Touch or press confirm switch when highlight icon (B) is highlighted.

Touch or press confirm switch when desired color box is highlighted.

• Green (C)
• Blue (D)
• Red (E)

Box displays a checkmark indicating which color was selected.

Touch or press confirm switch when display icon (F) is highlighted to return to previous screen.

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95845-UN-31MAR10

Combine Main
Application Icon

Touch or press confirm switch when combine main page icon is highlighted.
