Diagnostic Readings, About, Display Tests

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95849-UN-31MAR10

Display
Application Icon

Touch or press confirm switch when display settings icon is highlighted.

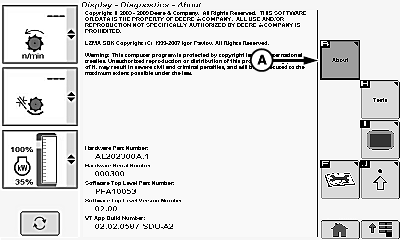

About Menu:

H95747-UN-05OCT10

A - About Menu Icon

Screen displays the following:

• Copyright Information
• Software and Hardware Information
  • Hardware Part Number
  • Hardware Serial Number
  • Software Part Number
  • Software Version Number
  • Application Build Number

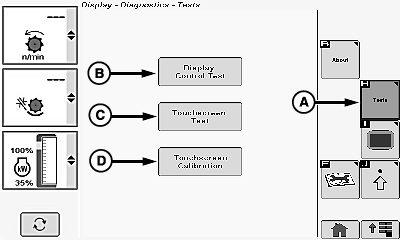

Display Tests:

H95748-UN-05OCT10

A - Tests Icon

B - Display Color Test Icon

C - Touchscreen Test Icon

D - Touchscreen Calibration Icon

Display Color Test:

Touch or press confirm switch when display color test icon (B) is highlighted.

• Display tests color of screen (diagram appears with red, blue, and green).
• If you do not see test colors, see your John Deere dealer.

Touchscreen Test:

NOTE: Only works if equipped with a touchscreen display.

Touch or press confirm switch when touchscreen test icon (C) is highlighted.

• Test allows operator to identify pixel problems on screen.
  1. When screen is touched a sighting target appears on area touched.
  2. Continue to touch screen around area of suspected pixel malfunction and see if sighting target appears.
  3. If sighting target does not appear, see your John Deere dealer.

Touchscreen Calibration:

NOTE: Only works if equipped with a touchscreen display.

Touch or press confirm switch when touchscreen calibration icon (D) is highlighted.

1. Another screen appears with an X in upper right corner.
2. Press screen at X and continue to follow X’s around screen. Always press screen directly at center of X.

NOTE: Touchscreen calibration cancels any saved calibrations and allows operator to start over and perform a new calibration.

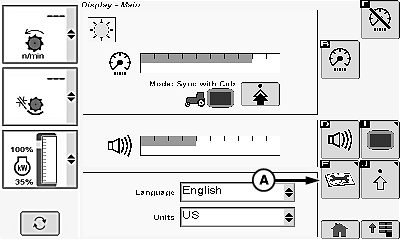

H95745-UN-05OCT10

A - Diagnostic Icon

Diagnostic Readings:

Touch or press confirm switch when diagnostic icon (A) is highlighted.

Screen displays the following:

• Unswitched Voltage
• Switched Voltage
• CAN High Voltage (Vehicle Bus)
• CAN High Voltage (Implement Bus)
• CAN Low Voltage (Vehicle Bus)
• CAN Low Voltage (Implement Bus)
• Display Operation Hours
• USB Present NOTE: Universal Serial Bus (USB) connector is located under armrest. Connector is used for basic diagnostic readings and to transfer data. Do not plug phone or audio devices into this connector. This connector is NOT for charging consumer devices.


H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95845-UN-31MAR10

Combine Main
Application Icon

Touch or press confirm switch when combine main page icon is highlighted.
