Message Center Application

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95846-UN-31MAR10

Message Center
Application Icon

Touch or press confirm switch when message center icon is highlighted.

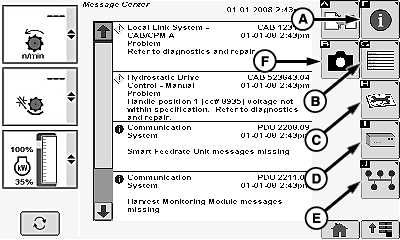

Message Center Icon (A):

H95965-UN-05OCT10

Displays messages or active trouble codes to operator if any are available.

Diagnostic Address Icon (B):

NOTE: If equipped with optional GreenStar display, do not attempt to access diagnostic address information on both displays at the same time.

Touch or press confirm switch when diagnostic address icon is highlighted.

Allows operator to select desired control units and make address modifications/changes or view addresses (see your John Deere Dealer).

Diagnostic Trouble Codes Icon (C):

NOTE: If equipped with optional GreenStar display, do not attempt to access diagnostic trouble codes on both displays at the same time.

Touch or press confirm switch when diagnostic trouble codes icon is highlighted.

Allows operator to view control units, trouble code addresses, code (active or not), and counts how many times code is displayed (refer Accessing Diagnostic Trouble Codes Menu in Diagnostic Trouble Codes Section for further information.

Electronic Control Unit Information (ECU) Icon (D):

Touch or press confirm switch when electronic control unit information icon is highlighted.

Allows operator to view control units, addresses, message counts, control unit part numbers and serial numbers, software part numbers and versions (see your John Deere Dealer).

CAN Bus Information Icon (E):

Touch or press confirm switch when CAN bus information icon is highlighted.

Allows operator to view if network status is active or not active, total message counts, and CAN high or low voltages (see your John Deere Dealer).

Transfer Debug Files Icon (F):

Touch or press confirm switch when transfer debug file icon is highlighted.

Almost any screen may be saved to internal memory and then copied to a Universal Serial Bus (USB) memory device (see your John Deere Dealer).

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95845-UN-31MAR10

Combine Main
Application Icon

Touch or press confirm switch when combine main page icon is highlighted.
