CommandTouch Multi-Speed Feeder House Drive Belt—Adjusting

CAUTION:

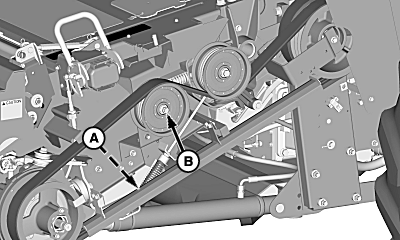

H90970-UN-05MAR08

A - Nuts

B - Idler Nut

Lower safety stop and remove left-hand feeder house shields.

Tighten nuts (A) to position washer between end of gauge and bottom of step.

NOTE: If gauge reaches end of tensioning, loosen idler nut (B) and move idler higher in slot. Tighten nuts to position washer between end of gauge and bottom of step.

Install feeder house shields previously removed.
