Header Reel/Belt Pickup Pump Belt (CommandTouch Multi-Speed Feeder House)—Replacing
CAUTION:

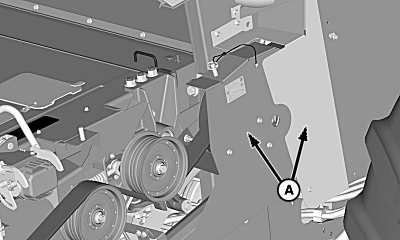

H90968-UN-05MAR08
A - Shields
Shut OFF engine, set parking brake and remove key.Lower safety stop and remove left-hand feeder house shields.
Remove shields (A).

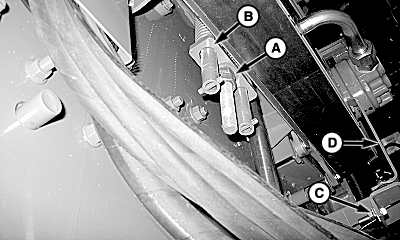

H87350-UN-05FEB07
A - Nuts
B - Spring Tensioner
C - Cap Screw and Nut
D - Brace
Loosen nuts (A) on spring tensioner (B) to relieve tension on drive belt.Remove cap screw and nut (C) to move reel pump brace (D) out of way.

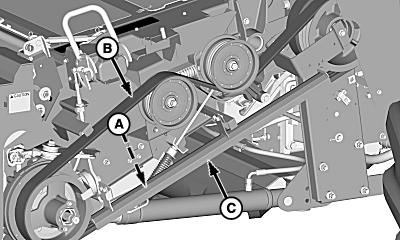

H90971-UN-05MAR08
A - Nuts
B - Drive Belt
C - Shield
Loosen nuts (A) to relieve tension on drive belt (B) and remove shield (C).

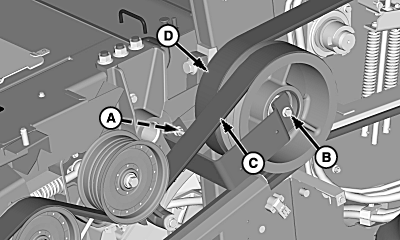

H90972-UN-05MAR08
A - Sensor Bracket
B - Cap Screw
C - Feeder House Drive Belt
D - Header Reel/Belt Pickup Pump Belt
Remove sensor bracket (A) and cap screw (B).Remove feeder house drive belt (C) from sheaves and header reel/belt pickup pump belt (D).
Install replacement header reel/belt pickup pump belt and feeder house drive belt.
Install sensor bracket and tighten cap screw to specification.
| Item | Measurement | Specification |
| Cap Screw | Torque | 185 N•m (136 lb-ft) |
NOTE:
H90971-UN-05MAR08
A - Nuts
B - Drive Belt
C - Shield
An equal gap is required on each side of drive belt and belt shield to prevent belt rubbing.Install previously removed shield (C) and tighten nuts (A) to position washer between end of gauge and bottom of step to properly tension drive belt (B).
H87517-UN-27FEB07
A - Brace
B - Cap Screw and Nut
C - Nuts
D - Holes
Install previously removed reel pump brace (A) and retain with cap screw and nut (B).Tighten nuts (C) until holes (D) appear through gauge.
|
OUO6075,0000655-19-20100202 |
