Feeder House Bottom Door and Feedplate Seal Support

CAUTION:

H52761
H52761-UN-17MAY99

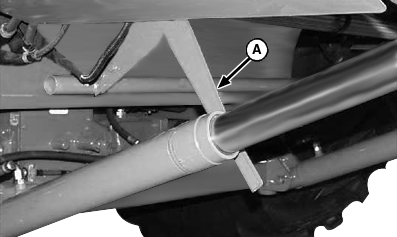

A - Lever

Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

Remove quick-lock pin and move lever (A) down and rearward to open door.

IMPORTANT: Lever will be bent if left down when feeder house is lowered.

Push lever forward and up to close door. Retain with quick-lock pin.

H74778
H74778-UN-14JAN03

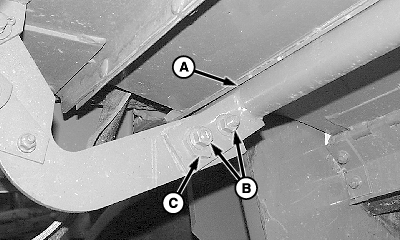

A - Seal

B - Cap Screws

C - Eccentric

If feeder house door does not seal (A) tight, grain leakage could occur.

Loosen cap screws (B) on both sides.

Turn eccentric (C).

Tighten cap screw securing eccentric.

Tighten remaining cap screws.
