Feeder House Top Shaft Stripper—Adjusting

CAUTION:

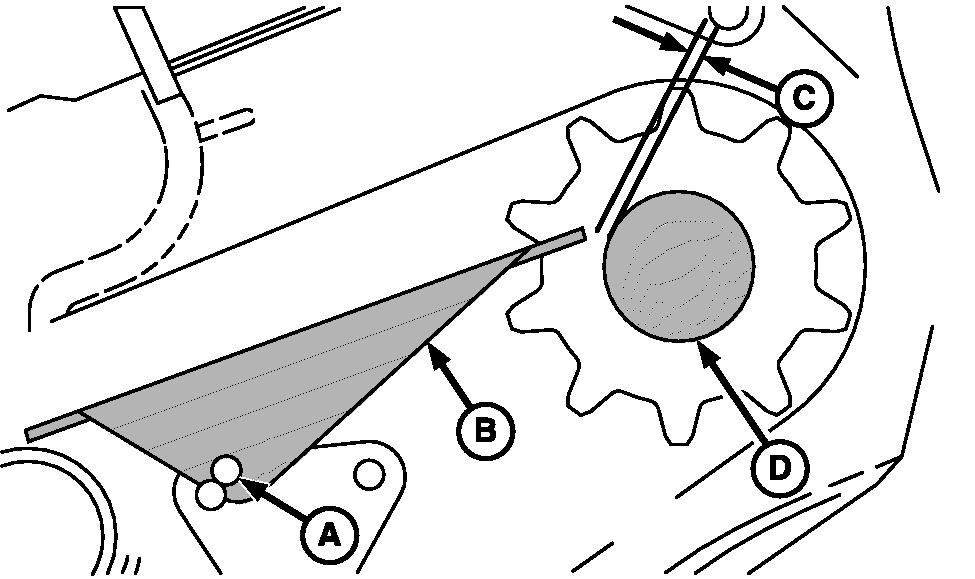

H59570-UN-18AUG99

A - Bolts

B - Stripper

C - Dimension 3 mm (1/8 in.)

D - Top Shaft

If top feeder house shaft should wrap, check to see that the strippers are adjusted as follows:

Remove top feeder house door.

Loosen bolts (A) and set stripper (B) to 3 mm (1/8 in.) (C) from top shaft (D).

Item	Measurement	Specification
Stripper Location	Distance	3 mm (1/8 in.)

Tighten bolts (A) and install top feeder house door.
