Header Reel/Belt Pickup Pump Belt (Fixed Speed Feeder House)—Replacing
CAUTION:

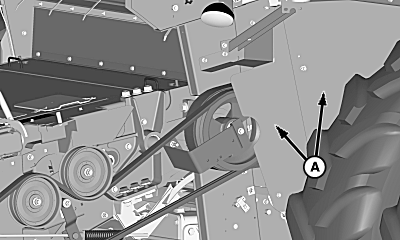

H90923-UN-28FEB08
A - Shields
Shut OFF engine, set parking brake and remove key.Lower safety stop and remove left-hand feeder house shields.
Remove shields (A).

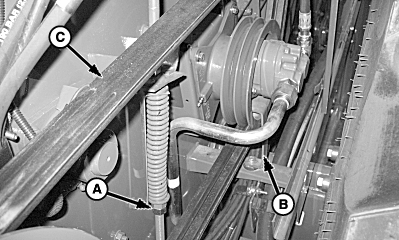

H90977-UN-06MAR08
A - Nuts
B - Brace
C - Drive Belt
Loosen nuts (A) to relieve tension from drive belt.Remove cap screw and nut to move reel pump brace (B) out of way so drive belt (C) can be removed.

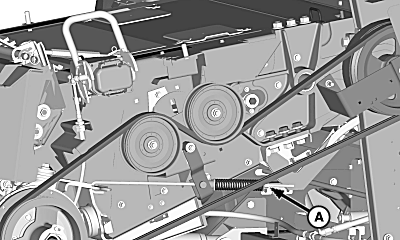

H90925-UN-28FEB08
A - Nuts
Loosen nuts (A) to relieve tension on drive belt.

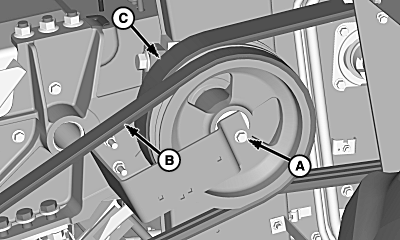

H90926-UN-28FEB08
A - Cap Screw
B - Fixed Speed Drive Belt
C - Header Reel/Belt Pickup Pump Belt
Remove cap screw (A), fixed speed drive belt (B) and header reel/belt pickup pump belt (C).

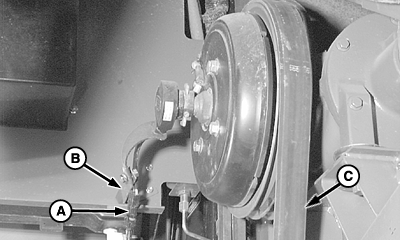

H87527-UN-27FEB07
A - Connector
B - Bracket
C - Header Reel/Belt Pickup Pump Belt
Disconnect connector (A) and remove strap from bracket (B).Remove and discard header reel/belt pickup pump belt (C).
Install replacement header reel/belt pickup pump belt, connect strap to bracket, and connect electrical connector.
H90926-UN-28FEB08
A - Cap Screw
B - Fixed Speed Drive Belt
C - Header Reel/Belt Pickup Pump Belt
Install replacement header reel/belt pickup pump belt (C) and fixed speed drive belt (B).Install and tighten cap screw (A) to specification.
| Item | Measurement | Specification |
| Cap Screw | Torque | 185 N·m (136 lb-ft) |

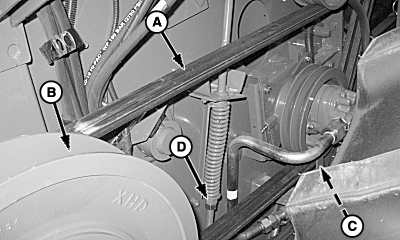

H90979-UN-06MAR08
A - Drive Belt
B - Sheave
C - Brace
D - Nuts (2 Used)
Install drive belt (A) around reel pump and rear sheaves (B).Install previously removed reel pump brace (C) with cap screw and nut.
Tighten nuts (D) to position washer between end of gauge and bottom of step to adjust drive belt.
H90925-UN-28FEB08
A - Nuts
Tighten nuts (A) to position washer between end of gauge and bottom of step to properly tension drive belt.Install left-hand feeder house shields.
|
OUO6075,000066C-19-20100202 |
