Level Land Feeder House Lower Cable End—Adjusting

H79380
H79380-UN-10DEC03

H79389
H79389-UN-10DEC03

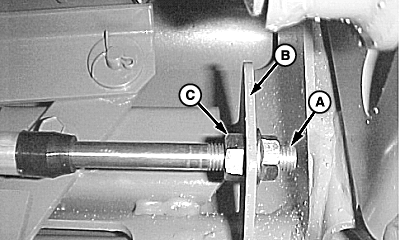

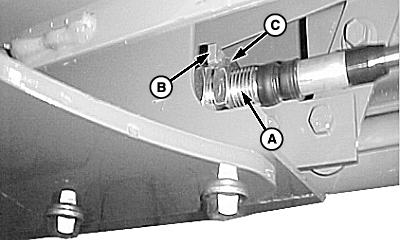

A - Threads

B - Bracket

C - Lock Nuts

Adjustments should be made to lower end of latching cable if threads (A) are not centered in bracket (B).

Loosen lock nuts (C) and adjust cable so that threads are centered in bracket.

Tighten lock nuts.

OUO6075,0000672-19-20100202
