Feeder House Conveyor Chain Links—Removing

NOTE:

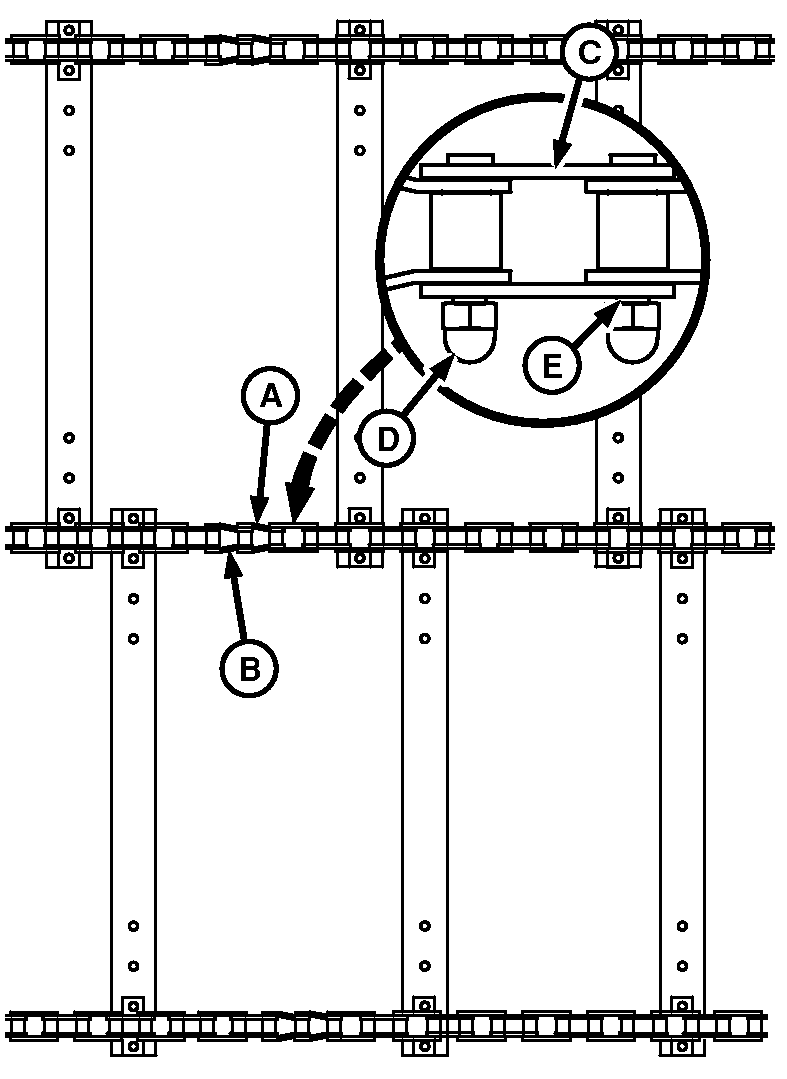

H87543-UN-17APR07

A - Offset Link

B - Offset Link

C - Sidebar

D - Cap Nut

E - Gap, 1—2 mm (3/64 in.—5/64 in.)

Remove offset links (A) for initial chain adjustment.

Remove offset links (B) for second adjustment. When adjustment is used up from second adjustment, chain is worn out and must be replaced.

Item	Measurement	Specification
”U” Slat M10 Hardware	Torque	73 N·m (54 lb-ft)
Chain Link M8 Cap Nuts	Torque	25 N·m (18 lb-ft)

IMPORTANT: When installing connector links, cap nuts must be oriented away from drum rings.

When chain link cap nuts (D) are torqued to specification, gap (E) should exist between connector link sidebar (C) and cap nut.
