Turn Signals
NOTE:
H95266-UN-22JUN11

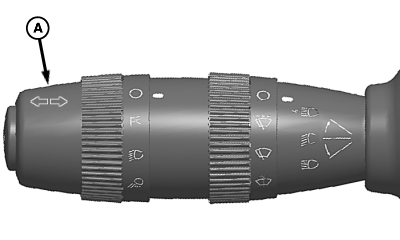

A - Turn Signal Lever
Turn signals operate anytime key switch is ON. With field light switch ON, turn signal lever actuates either right or left row finder light. Turn signals are not self-cancelling, so lever must be moved to neutral position.When operating machine on road or highway, use turn signal lever (A) to indicate turns.
NOTE: Indicator lights (left or right) on cornerpost illuminate and indicate a turn.
|
OUO6075,0000682-19-20110629 |
