Accessing Diagnostic Trouble Code Menu

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95846-UN-31MAR10

Message Center
Application Icon

Touch or press confirm switch when message center icon is highlighted.

H95508-UN-05OCT10

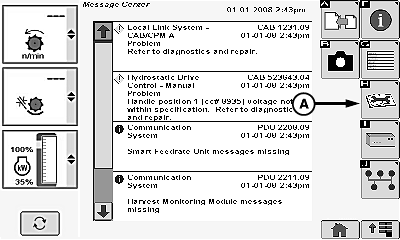

A - Trouble Codes Icon

NOTE:

H95509-UN-05OCT10

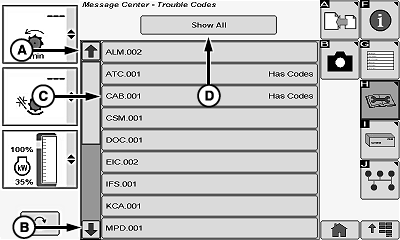

A - Up Arrow

B - Down Arrow

C - Control Unit

D - Show All Menu

Touch or press confirm switch when up arrow (A) or down arrow (B) is highlighted to scroll through control unit list.

Touch or press confirm switch when desired control unit (C) is highlighted.

H95511-UN-05OCT10

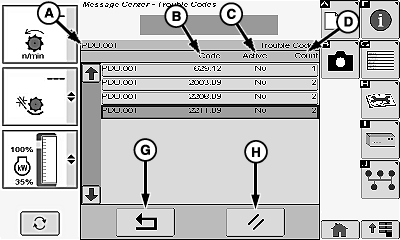

Individual Control Unit Trouble Codes

H95512-UN-05OCT10

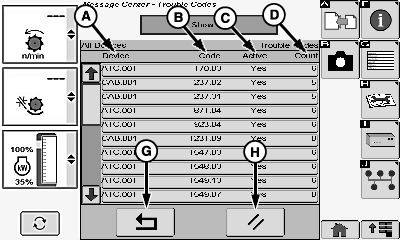

All Control Unit Trouble Codes

H95533-UN-05OCT10

Detailed Code Description

A - Control Unit/Device

B - Trouble Code

C - Active (Yes/No)

D - Count

E - Code Description

F - Enter/Accept Icon

G - Return/Back Arrow Icon

H - Clear Icon

NOTE: Touch or press confirm switch when up arrow or down arrow is highlighted to scroll through trouble codes if multiple codes are displayed.

Screen displays the following:

• Control Unit (A)
• Trouble Code (B)
• Active (Yes/No) (C)
• Count (D)

Touch or press confirm switch when desired code is highlighted.

Code description (E) appears and gives more detail of trouble code.

Touch or press confirm switch when enter/accept icon (F) is highlighted to return to previous screen.

Touch or press confirm switch when return/back icon (G) is highlighted to return to previous screen or until clear icon (H) is highlighted.

H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95845-UN-31MAR10

Combine Main
Application Icon

Touch or press confirm switch when combine main page icon is highlighted.
