Harvest Smart Feed Rate—Operation

NOTE:

H96239
H96239-UN-29APR10

A - Harvest Smart Feed Rate Enable Switch

B - Header Engage Switch

C - Separator Engage Switch

If operator leaves seat while Harvest Smart is activated, system will continue to operate for three seconds before system disengages and machine slows to a stop. To activate system, place multi-function lever in neutral position and press activation buttons 2 or 3 on multi-function lever.

Press Harvest Smart feed rate enable switch (A) until smart is shown on display.

Turn header engage switch (B) and separator engage switch (C) ON and lower header.

H95954
H95954-UN-01NOV10

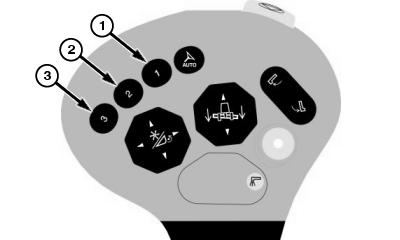

Press activation buttons 2 or 3 on multi-function lever to activate system and move multi-function lever fully forward.

NOTE: Multi-function lever limits maximum ground speed. Move multi-function lever rearward to slow or stop machine. Move multi-function lever forward to slowly allow machine to go to operator preset ground speed.

Maximum allowable ground speed is shown on CommandCenter display.

CAUTION: Once activation button 1 is pressed machine will accelerate to multi-function lever position, returning full control of multi-function lever to operator.

When coming to end of field, press activation button 1 on multi-function lever. This temporarily deactivates the system, allowing machine to accelerate to multi-function lever position. When system is temporarily deactivated, operator has full control of machine. Pull multi-function lever rearward to slow machine.

When entering crops, press activation button 2 or 3 on multi-function lever to reactivate system and move multi-function lever fully forward.

OUO6075,000070A-19-20101213
