Feed Accelerator Belt—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

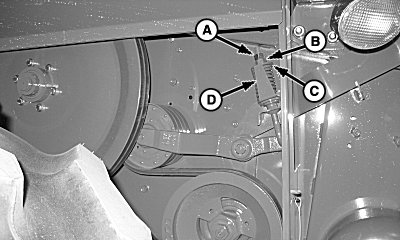

H85678
H85678-UN-06APR06

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Feed accelerator belt idler is located on right-hand side of machine behind feeder house pivot.

Loosen lock nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
