Chopper Vane Angle Adjust Switch (If Equipped)

H94677
H94677-UN-27JAN10

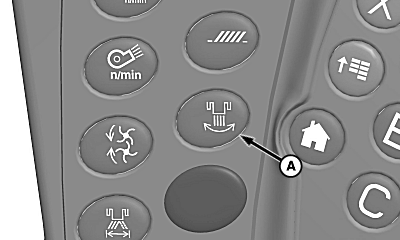

A - Chopper Vane Angle Adjust Switch

Chopper vane adjust switch (A) allows operator to adjust direction of chopper vanes from inside cab.

  1. Press chopper vane angle adjust switch.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to adjust chopper vanes to the left or right.

  3. Display shows operator adjustment settings.

OUO6075,000074F-19-20100928
